DLOGIC
State of the art industrial grade touch display computers
Ready for use in your applications
About us
Industrial strength, reliable, designed for easy integration into your product

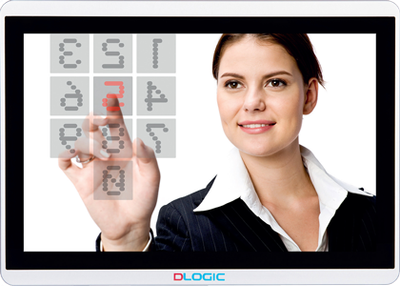

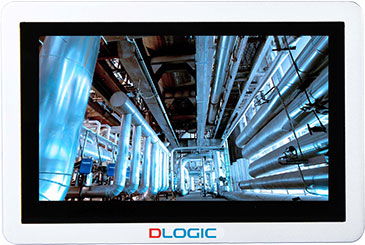

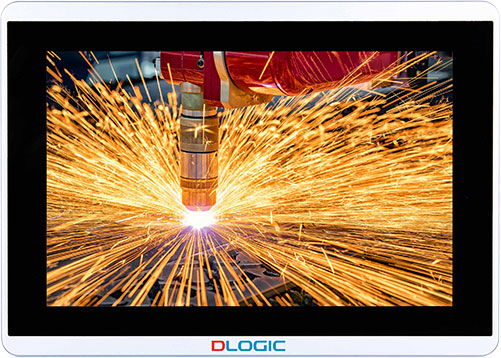

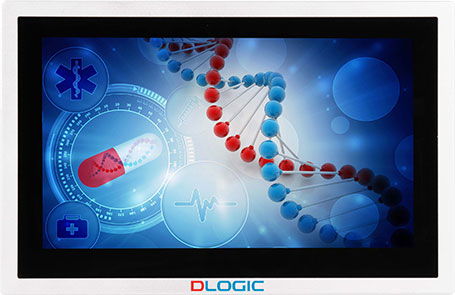

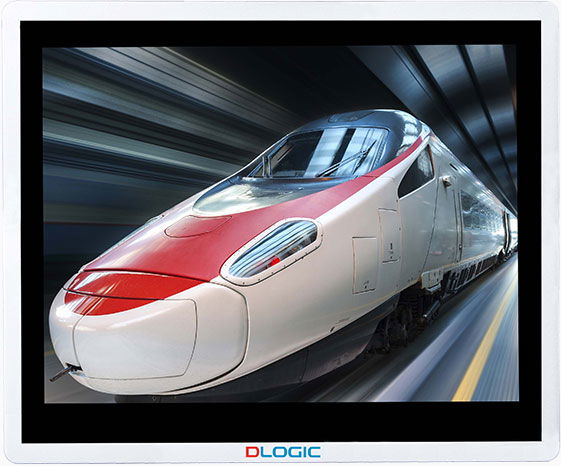

DLOGIC’s product series of versatile touch display computers, provides a state of the art device platform for the creation of modern responsive touch based user experiences.
The DM product line is designed from the ground up by our highly skilled engineers and display touch technology experts for simple and quick integration into 3rd party equipment and professional solutions.

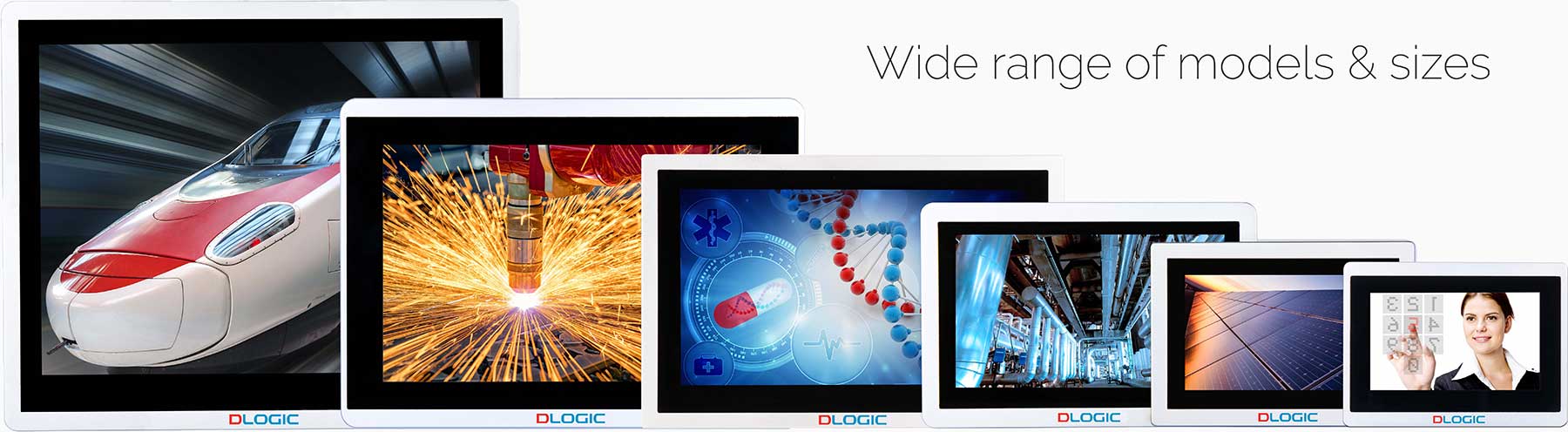

The DM product family is flexible and feature rich and include models suitable for use in a wide range of applications and different environments including outdoor and harsh environments.
Our DMs provide a cost effective fast track to equip your product with enhanced embedded computing power and state of the art modern touch based user interfaces.
Use our expert display touch computer engineering competence

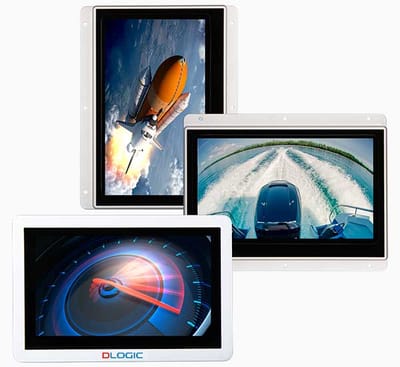

Standard Alu frame front mount versionsExample applications
Appliances
Industrial Equipment
Point of Sale
Marine and Shipping
Monitoring and Control
Professional Vehicles
Digital Signade
DLOGIC, GmbH®, headquartered in Baar, Switzerland, is a leading supplier of industrial touch display computers for industrial applications. Our innovative technologies enable equipment manufacturers to quickly bring to market product solutions with leading-edge, touch-enabled display capabilities. DLOGIC has a wide portfolio of touch display products available. Additionally our extensive knowledge and vast experience allows our engineering team to work closely with manufacturers to design display capabilities that meet the unique requirements for the most demanding applications. Our product realization services can combine customized touch display computing technologies into a fully integrated and tested turnkey product.
DLOGIC was formed in 2008 with the goal of developing state of the art world class user interface computing solutions for industrial applications. We saw the success of the original iPhone and figured this would lead to a demand for sophisticated touch based graphical user interface devices of all types, classes and markets.
At a time were manufacturing of electronic products to a large extent had moved to China we also decided to locate our engineering organization to Shenzhen the largest electronics development zone in the world. Being close to this technology center enables us to work directly with the vast local electronics industry to develop our state of the art technology solutions for displays, touch sensors, mechanics and electronics. We have built a highly skilled engineering organization on western principles utilizing the local technology industry in the Silicon Valley of China.
With the vision of developing innovative solutions for a wide target market with potential customers having many different product types and requirements we designed our solutions from the ground up with reliability, flexibility and usability as the key design attributes. With our background and rich experience from world class engineering organizations in North America and Europe we have been able to design and develop a product range satisfying our goals that are perfectly suited for integration and use in 3rd party products. The DLOGIC display modules offers excellent display and touch performance in a fully self-contained ready to use module at competitive prices.
DLOGIC was formed in 2008 with the goal of developing state of the art world class user interface computing solutions for industrial applications. We saw the success of the original iPhone and figured this would lead to a demand for sophisticated touch based graphical user interface devices of all types, classes and markets.
At a time were manufacturing of electronic products to a large extent had moved to China we also decided to locate our engineering organization to Shenzhen the largest electronics development zone in the world. Being close to this technology center enables us to work directly with the vast local electronics industry to develop our state of the art technology solutions for displays, touch sensors, mechanics and electronics. We have built a highly skilled engineering organization on western principles utilizing the local technology industry in the Silicon Valley of China.
With the vision of developing innovative solutions for a wide target market with potential customers having many different product types and requirements we designed our solutions from the ground up with reliability, flexibility and usability as the key design attributes. With our background and rich experience from world class engineering organizations in North America and Europe we have been able to design and develop a product range satisfying our goals that are perfectly suited for integration and use in 3rd party products. The DLOGIC display modules offers excellent display and touch performance in a fully self-contained ready to use module at competitive prices.
DLOGIC Switzerland
Rathausstrasse 14
CH-6341 Baar, Switzerland
Phone: +41 (41) 5880240
Fax: +41 (41) 5608188
E-mail: info@dlogic.com
Rathausstrasse 14
CH-6341 Baar, Switzerland
Phone: +41 (41) 5880240
Fax: +41 (41) 5608188
E-mail: info@dlogic.com
DLOGIC Europe
Schellenberg 8
DE-79798 Jestetten
GERMANY
Tel: +49 7745 2799 390
E-mail: eusales@dlogic.com
DLOGIC Hong Kong
21D Hong Kong Industrial Building
444 Des Voeux Road West
Western District, Hong Kong
Phone: +852 2818 6694
E-mail: info@dlogic.com
DLOGIC China
26.E201 Haiwan Garden,
Haichang Rd, Shekou, Nanshan District,
Shenzhen, 518067, China
Phone: +86 755 2668 6336
E-mail: info@dlogic.com
Applications
Built from the ground up by our in-house engineering team
Our DMs consists of color display, touch sensor and an embedded computer mounted into an aluminum or stainless steel frame all wrapped in a robust stainless steel housing.
A flexible set of interfaces are provided as standard and our standard Linux based software package is pre-installed with drivers enabling the available interfaces.
DMs are fully functional and production ready and configured to run your application
Display
Super-bright displays with ultra-wide viewing angles.
Portrait and landscape mode support with the same device.Ultra-wide viewing angles – supporting both portrait and landscape mode
24-bit color depth for clear and vibrant colors
High quality long-life backlight LEDs
Wide temperature range support
Touch
State of the art projected capacitive touch sensors for accurate and reliable touch detection. Multi-touch support
Glove support
Water & Moisture support.
Mechanical
Diverse set of standard mechanical solutions available, including rear or front mount finished in different materials with many levels of ruggedizing options.Front mount or rear mount
Stainless steel protective housing
Aluminum or Stainless Steel frame options
Other frame material options or frameless on request
Water proofing, dust proofing or other ruggedizing enhancements available
Electronics
Industrial electronics with differentiated processing options and flexible set of standard interfaces designed to industrial specifications.Designed to industrial specifications
ARM based power efficient processing platform
Wide temperature range
Differentiated performance options
Flexible set of interfaces
Lockable connectors
Your interfaces and connector choice on request
Optical Bonding
Models with optically bonded display and touch sensor available. All sizes can be provided with physically hardened optically bonded safety glass.
Many DM models are available with optical bonding of the display and touch sensor. The optical bonding process removes the air gap between the display and touch sensor by fixing the touch sensor directly to the display glass. This removes any unwanted reflection of light between the display and touch sensor. The result is a vibrant display of color and improved contrast yielding a pristine high quality look.Optical bonding is particularly important for equipment designed for outdoor use to avoid reflection from direct sunlight.
A major benefit of optical bonding is also that it ensures there is no possibility for dust and dirt to get in-between the display and touch sensor.
Software Platform
Rock solid Linux distribution board support packages supporting CODESYS, HTML5 (Chromium), QT5 QML/C++, Java, Mono and VNC client application environments.
Development kit with all necessary development tools provided.Fully functional board support package (BSP)
Rock solid Debian Linux distribution
Access to all Debian distribution packages through standard tools
QT5 (QML / C++), HTML5 web clients, Java, Mono and VNC clients support
CODESYS target visualizer support
Driver support for all interfaces
GPU hardware accelerated graphics support [x-series]
VPU hardware video encoding/decoding support [x-series]
SAFETY GLASS OPTION
The hardness of the safety glass is 8H or higher far exceeding the typically 6H hardness of industry standard touch panel glass and can pass various safety industry standards.
The safety glass is optically bonded with the touch panel and can be seamlessly integrated into the DM providing a completely flat front surface.
As an alternative, for internal rear mounting, a solution with the safety glass protruding out can be used enabling the DM to be installed into a front cosmetic pill providing a completely flat front surface.
Our DM touch sensors are custom designed to support the safety glass solutions supporting reliable high performance touch detection and reporting.
Development Kits and Development Environment
Developer kits with DM, connector board, necessary cables and software tools to quick-start development projects are available for all standard DM sizes.
Host and target based development and testing support is provided with working pre-configured Linux Virtual Machine including:
Cross compile tools
QT5 Integrated Development Environment
Demo applications with source code
Target software testing, deployment and remote boot support
Our technical support service is available at no additional cost to all customers.
Our DM development kits enables quick-start of application development on both host and target device. The target device is a production grade standard DM in the size of your choice.
The host based environment is provided as a virtual machine running Debian Linux closely matching the target based DM environment. The VM includes pre-configured tool chains for cross compiling as well as an integrated development environment for graphical user application development with the QT5 libraries.
The development host is configured for QT application development and testing on the host and on deployment and testing on the target device. A number of example source code projects are provided to support quick start-up of your QT-based application development project.
If you need additional library support in your BSP or QT is not your preferred development environment choice the Debian distribution repositories provides a wide range of alternatives that can be configured using the standard package management tools.
The host based environment is provided as a virtual machine running Debian Linux closely matching the target based DM environment. The VM includes pre-configured tool chains for cross compiling as well as an integrated development environment for graphical user application development with the QT5 libraries.
The development host is configured for QT application development and testing on the host and on deployment and testing on the target device. A number of example source code projects are provided to support quick start-up of your QT-based application development project.
If you need additional library support in your BSP or QT is not your preferred development environment choice the Debian distribution repositories provides a wide range of alternatives that can be configured using the standard package management tools.
Services
DLOGIC provides support from engineering to manufacturing and through the entire life of the product.
To support your selection, adaptation and integration of a Display Module (DM) in your solutions we provide a full range of services including:Display Module selection
We provide an evaluation kit including a standard DM product of your choice with demo applications and development tools. During your development we provide support for any DM related issues.
Display Module customization
When a standard DM will not do we provide specialist engineering resources to adapt / customize our standard DMs to satisfy your application requirements.
Display Module manufacturing & support
We manufacture all our product in our specialized display assembly factory where we build your DM from the ground up according to your specification.
Need a custom solution?
Our dedicated engineering team can quickly turn our standard Display Module into your special version satisfying all your requirements.
When a standard Display Module (DM) will not do, our engineering team is at your service to provide custom DM solutions tailored for your product requirements.
The Display Module hardware and software is optimized for quick adaptation and customization to specific product requirements. With our specialized supply base we can provide quick turn-around times for adapted DM solutions satisfying your technical and time to market requirements. When engineering is completed we manufacture and assemble your DM version to the developed custom specifications.
Typical customizations include:
Mechanical integration adaptations and mounting solutions
Alternative housing materials choices
Display alterations (type, size, resolution, backlight intensity, viewing angles)
Connector types and layout
Additional external interfaces
Software board support enhancements (drivers, protocols, libraries)
Software application development including graphical user interface design.
Manufacturing
Our manufacturing service ensures timely deliveries of your DMs based on your ordering schedule to your preferred destination.
Our factory is specialized in industrial and robotics product manufacturing and is certified for ISO9001, QS9000, ISO14000, ISO14001, OHSAS18000, UL, TUV and TS16949-1/2.
As part of our manufacturing service we install the BSP on all modules in addition we can install your application software and we can customize the BSP based on your specific requirements.
During manufacturing each DM goes through rigorous test programs and quality checks to ensure every DM is delivered in pristine working condition and is ready for deployment in your products.
Our factory is specialized in industrial and robotics product manufacturing and is certified for ISO9001, QS9000, ISO14000, ISO14001, OHSAS18000, UL, TUV and TS16949-1/2.
As part of our manufacturing service we install the BSP on all modules in addition we can install your application software and we can customize the BSP based on your specific requirements.
During manufacturing each DM goes through rigorous test programs and quality checks to ensure every DM is delivered in pristine working condition and is ready for deployment in your products.
Quality & Intellectual Property
Our company culture is built on the firm belief that quality leads to higher productivity. We strive for quality in every undertaking. Our dedication and commitment combined with our work methods and tools are the basis for achieving quality. Our work processes are based on practical proven techniques or best practices:
Iterative development
Independent testing and verification
Reviews and Audits
Standards
Ethics
We have implemented world class engineering and manufacturing processes. Our products are certified by third party laboratories and carry many standard certifications.
DLOGIC recognizes that compliance with Intellectual Property right laws and international agreements are of vital importance to our clients. Protecting the Intellectual Property of our clients is subsequently of critical importance to the success of our business. We therefore implement stringent control and procedures to ensure proper IP protection on a per project and client basis.
Iterative development
Independent testing and verification
Reviews and Audits
Standards
Ethics
We have implemented world class engineering and manufacturing processes. Our products are certified by third party laboratories and carry many standard certifications.
DLOGIC recognizes that compliance with Intellectual Property right laws and international agreements are of vital importance to our clients. Protecting the Intellectual Property of our clients is subsequently of critical importance to the success of our business. We therefore implement stringent control and procedures to ensure proper IP protection on a per project and client basis.
